Portable Water Cooled Chiller Unit 67.14KW Cooling Capacity Low Temperature Alarm CE ISO

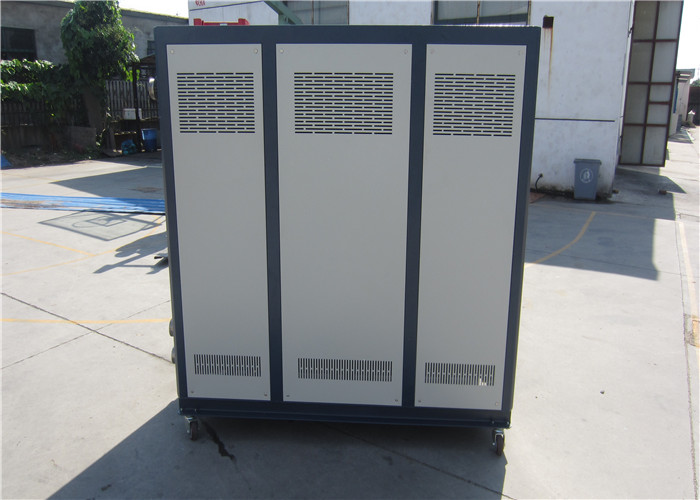

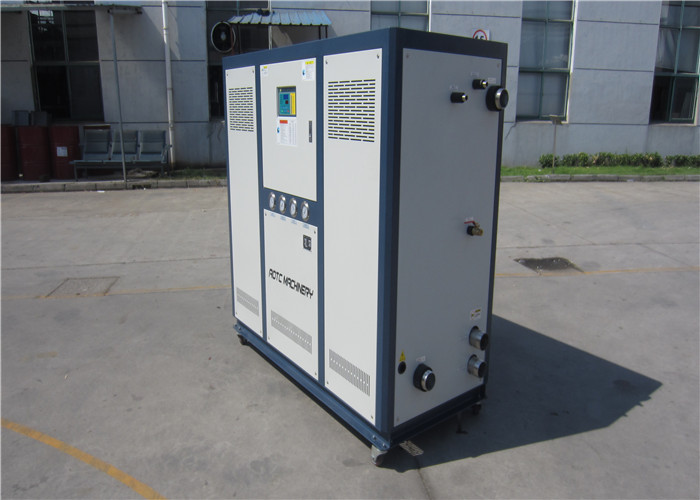

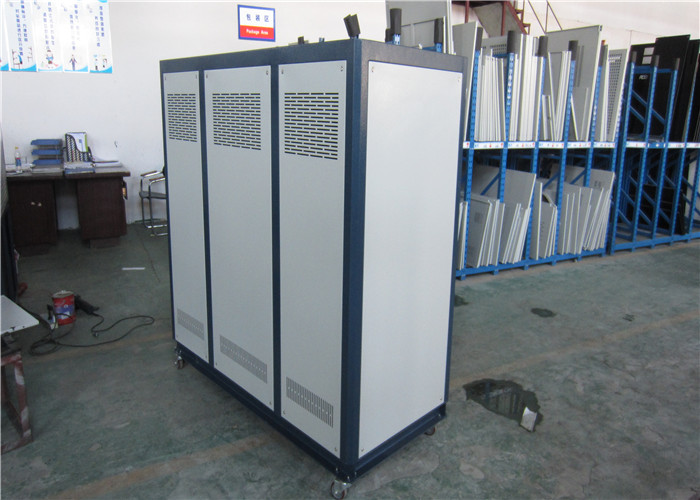

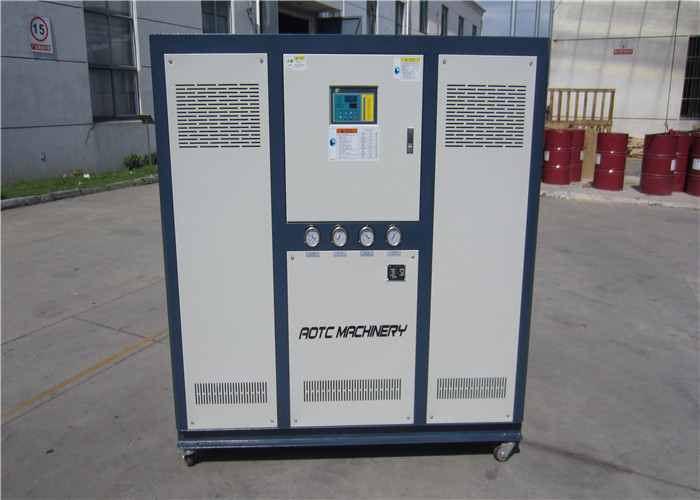

Description of Portable Water Cooled Chiller Unit

Portable Water Cooled Chiller Unit is an advanced cooling system designed for industries requiring precise temperature control and high cooling efficiency. With a 67.14KW cooling capacity and dual hermetic scroll or piston compressors, it ensures stable operation for plastic injection molding, die casting, hot rolling machines, and chemical processing. The unit features low water level and temperature alarms, high/low pressure protection, and RS485 automation compatibility. Certified by CE & ISO, it enhances energy efficiency by 30%, prevents water leakage with an SUS304 stainless steel tank, and operates safely with OMRON, FUJI, and TE electrical components. Ideal for manufacturers seeking reliable, energy-saving, and fully automated cooling solutions.

Detailed Informations of Portable Water Cooled Chiller Unit

Product Features and Key Selling Points

AODE Portable Water Cooled Chiller is designed to provide precise and efficient cooling for industrial applications. With a cooling capacity of 67.14KW (57,748 Kcal/h), it features high/low pressure protection, overheating prevention, and low water level and temperature alarms to ensure safe and stable operation. Equipped with a hermetic scroll or piston compressor, stainless steel water tank (SUS304), and efficient heat exchangers, this chiller offers superior durability and reliability. The RS485 communication function (optional) allows for automated system management, reducing the need for manual intervention.

Specifications of Portable Water Cooled Chiller Unit 67.14KW Cooling Capacity Low Temperature Alarm CE ISO

Core Advantages of Portable Water Cooled Chiller

1. High Cooling Efficiency: Uses a highly efficient evaporator and condenser, saving over 30% energy consumption.

2. Durability and Corrosion Resistance: Constructed with SUS304 stainless steel water tanks and oxygen-free welded refrigerant systems to extend service life.

3. Reliable Components: Equipped with Danfoss, Alco, OMRON, FUJI, TE, LG, MOELLER, SCHNEIDER electrical parts to ensure long-term reliability.

4. Advanced Protection System: Features low water level and low-temperature alarms, high/low pressure protection, and overheat prevention for enhanced safety.

5. Flexible Compressor Operation: Includes dual compressor heads (for models above AC-08), allowing individual or combined operation to meet variable cooling demands.

6. User-Friendly Control: Integrated micro-computer or PLC system (optional) for precise temperature control and remote management via RS485.

Applications of Portable Water Cooled Chiller Unit 67.14KW

1. AODE Portable Water Cooled Chiller is widely used in industries requiring precise cooling, including:

2. Plastic Injection Molding & Extrusion – Ensures consistent cooling for plastic shaping processes.

3. Metal Processing & Die Casting – Maintains optimal temperatures for aluminum, magnesium, and steel production.

4. Chemical & Pharmaceutical Industry – Supports controlled cooling for chemical reactions and formulations.

5. Printing, Dyeing, and Textile Manufacturing – Prevents overheating in printing and textile dyeing processes.

6. Rubber & Composite Materials – Provides stable cooling for vulcanization, molding, and lamination.

Customization Options and Purchase Considerations

1. Compressor Type: Hermetic scroll or piston, based on application needs.

2. Refrigerant Type: Standard R22, with eco-friendly alternatives available upon request.

3. Control System: Standard micro-computer or optional PLC for advanced automation.

4. Cooling Capacity: Customizable for different industrial applications.

5. Installation Requirements: Requires stable water supply, proper ventilation, and a reliable power source (3N-380V 50HZ).

Installation and Usage Instructions

1. Placement: Install in a well-ventilated, level area with access to cooling water.

2. Water Connection: Connect the chilled water inlet/outlet and cooling water pipes securely.

3. Electrical Setup: Ensure the correct voltage and current capacity before powering on.

4. System Check: Verify refrigerant levels, pressure settings, and water flow before starting.

5. Operation: Use the control panel to set the desired temperature and monitor system status.

Maintenance and Care Guide

• Regularly check water levels and refill when necessary to prevent low water alarms.

• Inspect the compressor, refrigerant lines, and electrical components every 3-6 months.

• Clean the condenser and evaporator periodically to maintain cooling efficiency.

• Monitor temperature settings to ensure optimal energy consumption.

• Schedule professional servicing annually for performance optimization.

FAQs for AODE Portable Water Cooled Chiller

1. What are the key advantages of the AODE Portable Water Cooled Chiller?

The chiller provides high-efficiency cooling (67.14KW), energy savings (30%+), advanced safety features (low water alarms, overheat protection), and durable stainless steel construction, making it ideal for industrial use.

2. How does the Portable Water Cooled Chiller improve energy efficiency?

It features highly efficient evaporators and condensers, dual compressor heads for flexible operation, and intelligent control systems to optimize cooling performance and reduce power consumption.

3. What industries can benefit most from this chiller?

Industries such as plastic injection molding, metal processing, pharmaceuticals, printing, and rubber manufacturing rely on this chiller for precise temperature control and consistent performance.

4. What should businesses consider before investing in this chiller?

Buyers should evaluate their cooling capacity needs, power supply compatibility (3N-380V 50HZ), space for installation, and maintenance capabilities to ensure seamless operation.

5. Can the AODE Portable Water Cooled Chiller be customized?

Yes, compressor type, refrigerant options, control system (PLC or micro-computer), and cooling capacity can be tailored based on specific industrial requirements.

6. How often does this chiller require maintenance?

Routine maintenance is recommended every 3-6 months, including water level checks, refrigerant inspections, condenser cleaning, and system performance monitoring. Professional servicing is advised annually.
