Product Details:
| Place of Origin: | Industrial Chiller Supplier |
| Brand Name: | AODE |
| Certification: | ISO, CE, ROHS |
| Model Number: | AC-40AF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $ |
| Packaging Details: | Protective/air bubble film, Wooden case. As client’s require |
| Delivery Time: | Within 20days after receiving |
| Payment Terms: | 30% T/T in advance, 70% balanc |
| Supply Ability: | 500pcs/month |
Modular Water Cooled Chillers, Industrial Modular Water Cooled Chillers, Modular Water Cooled Chillers 3N-380V 50HZ made from AODE are high quality, buy Industrial Modular Water Cooled Chillers 3N-380V 50HZ Small Water Chiller from industrial chiller manufacturer at factory, which is one type of our AODE's Modular Water Cooled Chillers, manufactured with features 3N-380V 50HZ, below is the detailed description:

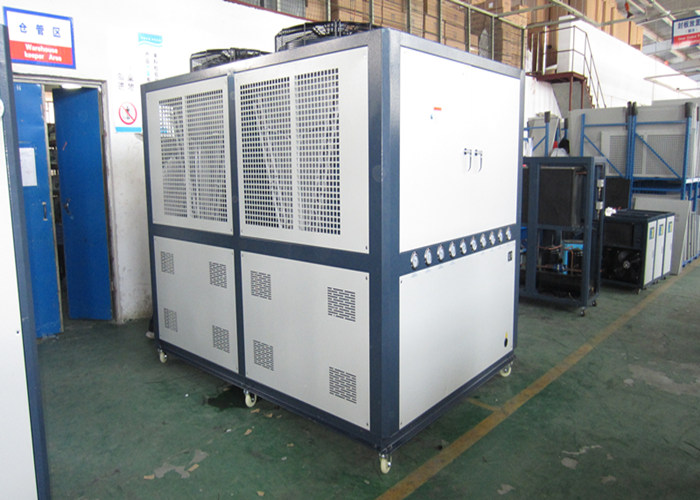

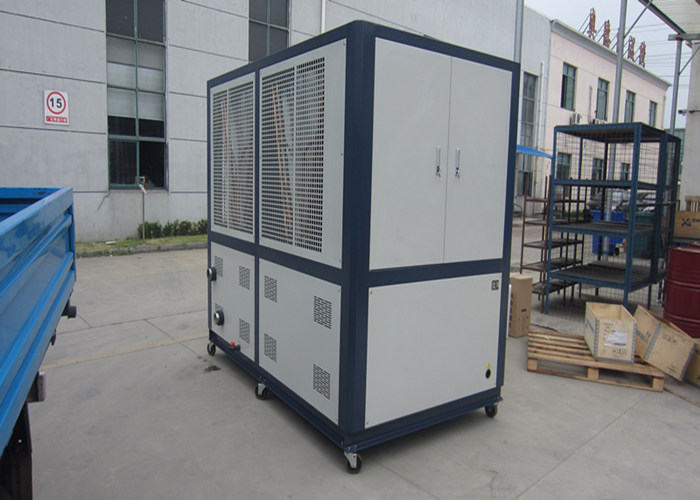

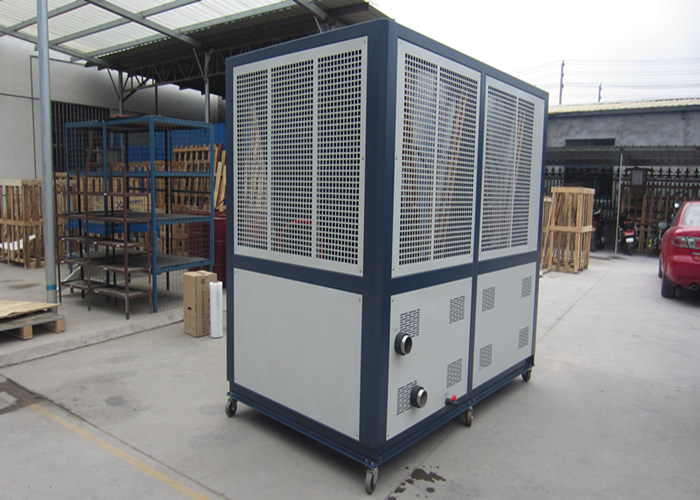

Industrial Modular Water Cooled Chillers 3N-380V 50HZ Small Water Chiller features a Hermetic Scroll or Piston compressor, delivering a cooling capacity of 97,675 Kcal/h (50HZ). It is ideal for die casting, printing, chemical industries, and more. Certified by CE & ISO, this unit includes high/low pressure protection, overheating protection, low water level alarm, and low water temperature alarm, ensuring safe and stable operation. The SUS304 stainless steel water tank prevents corrosion and leakage. Equipped with premium components from Danfoss (Denmark) and Alco (USA), the system guarantees high efficiency and energy savings. PLC control is optional, allowing for automated management to adapt to various operational needs.
| Product Name: | Modular Water Cooled Chillers | Brand Name: | AODE |
|---|---|---|---|
| Application: | Die Casting|Pringting|Chemical | Certification: | CE|ISO |
| Compressor Type: | Hermetic Scroll Or Piston | Power Supply: | 3N-380V 50HZ |
| Theory: | Water Cooled | ||
| High Light: | Modular Water Cooled Chillers, Industrial Modular Water Cooled Chillers, 3N-380V 50HZ Modular Water Cooled Chillers, Small Water Chiller | ||
ITEM | UNIT | AC-40AF | |
Cooling capacity | KW50HZ | 113.58 | |
Kcal/h 50HZ | 97675 | ||
Total input | KW | 42.8 | |
Maximum Running Current | A | 97.5 | |
Power supply | 3N-380V 50HZ | ||
Refrigerant | Name | R22 | |
Charge | Kg | 8.5×4 | |
Control Type | External Balanced Thermal Expansion Valve | ||
Compressor | Type | Hermetic Scroll or Piston | |
Power | Kw | 7.5×4 | |
Air Flow | M3/h | 40000 | |
Chilled water | Flow | M3/h | 19.53 |
Tank | M3 | 0.61 | |
In/Out Pipe Size | G3” | ||
water Pump | Power | Kw | 4 |
Pressure | Kpa | 250 | |
Size(L×W×H) | mm | 2565×1220×2310 | |
Weight | Kg | 1100 | |
High Cooling Efficiency: 97,675 Kcal/h (50HZ) for a wide range of industrial applications
Advanced Safety Features: High/low pressure protection, overheating protection, low water level & temperature alarms
Premium Imported Compressor: Sourced from Europe, the US, and Japan for stable performance
Top-Quality Components: Danfoss (Denmark) and Alco (USA) expansion valve for optimal cooling performance
Durable Water Tank: SUS304 stainless steel prevents corrosion and leakage
Smart Control System: Optional PLC control for automated and remote operation
Die casting & plastic injection molding for precise temperature control
Printing & textile industry requiring stable cooling
Chemical & pharmaceutical manufacturing for temperature-sensitive reactions
Electronics manufacturing to maintain product quality
Rubber & mold industries needing precision cooling
PLC remote control system for enhanced automation
Compressor options (Hermetic Scroll or Piston) to fit different applications
Customizable water tank materials (stainless steel/carbon steel) for different cooling mediums
Adjustable water flow rate & condenser type to meet specific cooling needs
Voltage and frequency customization to comply with different regional power standards
Energy Efficient: Advanced cooling system reduces energy consumption by over 30%
Durable & Reliable: High-quality imported components ensure long-term stable performance
Smart Management: Optional PLC system enables remote control and automation
Eco-Friendly: Uses environmentally friendly refrigerants to lower carbon emissions
Easy Maintenance: Key components are designed for quick disassembly and cleaning
Versatile Applications: Suitable for multiple industries, including die casting, chemicals, and printing
Which industries are Industrial Modular Water Cooled Chillers suitable for?
They are mainly used in die casting, plastic injection molding, printing, chemical, electronics, and rubber processing industries.
What is the cooling capacity of this chiller?
The cooling capacity is 97,675 Kcal/h (50HZ), making it ideal for industrial cooling requirements.
What are the advantages of a water-cooled chiller compared to an air-cooled chiller?
Water-cooled chillers offer higher efficiency, more stable operation, and are suitable for large-scale production lines.
How do I choose the right compressor type?
Hermetic Scroll compressors are more energy-efficient, while Piston compressors handle heavier loads effectively.
Does this chiller support PLC control?
Yes, an optional PLC control system is available for remote automation and management.
Is the water tank easy to maintain?
Yes, the SUS304 stainless steel water tank is corrosion-resistant and designed for easy cleaning and maintenance.
