Product Details:
| Place of Origin: | Industrial Chiller Supplier |
| Brand Name: | AODE |
| Certification: | ISO, CE, ROHS |
| Model Number: | AC-25WD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $ |
| Packaging Details: | Protective/air bubble film, Wooden case. As client’s require |
| Delivery Time: | Within 20days after receiving |
| Payment Terms: | 30% T/T in advance, 70% balanc |
| Supply Ability: | 500pcs/month |

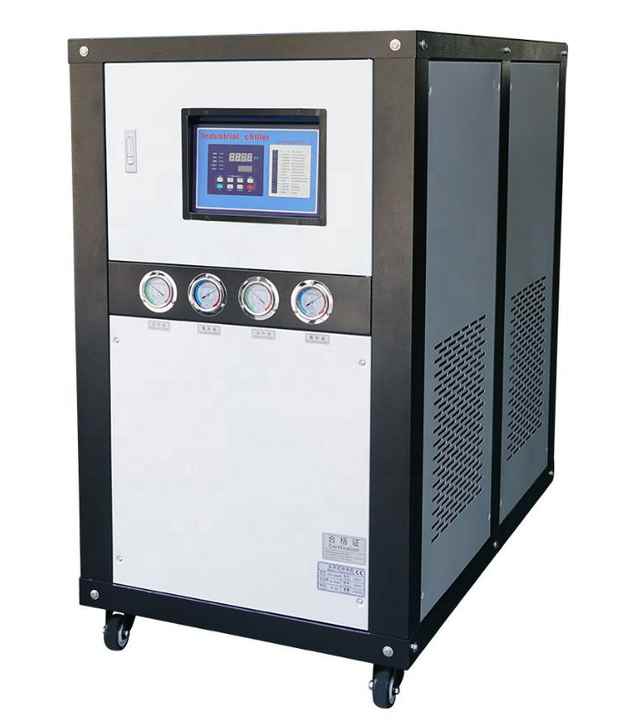

The Piston Type Water Cooled Chiller is designed for heavy-duty industrial cooling, offering high refrigerating capacity (70120Kcal/h at 50Hz) and low energy consumption. Equipped with advanced high/low-pressure protection and overheating safeguards, this machine ensures optimal and safe performance. Featuring imported compressors from Europe, the US, and Japan, and a robust SUS304 stainless steel water tank, the chiller offers excellent corrosion resistance and long-lasting durability. Its precision-controlled refrigerating system uses oxygen-free welding for superior efficiency.
| Product Name: | Water Cooled Chiller | Brand Name: | AODE |
|---|---|---|---|
| Application: | Die Casting|Pringting|Extruder | Certification: | CE|ISO |
| Compressor Type: | Hermetic Scroll Or Piston | Power Supply: | 3N-380V 50HZ |
| Theory: | Water Cooled | ||
| High Light: | 70120Kcal/h Water Cooled Chiller, 21.3kW Water Cooled Chiller, Piston Type Compressor Water Cooled Chiller, Industrial Cooling Machine | ||
High/Low Pressure Protection: Safeguards the compressor for longevity.
Low Water Level & Temperature Alarm: Prevents malfunction by signaling low water levels and temperatures.
Energy-Efficient Cooling: Powerful refrigeration capacity and low energy input.
Imported Components: Uses components from top global brands like Danfoss and Alco.
Stainless Steel Water Tank: Corrosion-resistant, ensuring a long lifespan.
Advanced Control: External Balanced Thermostatic Expansion Valve for efficient performance.
ITEM | UNIT | AC-25WD | |
Cooling capacity | KW50HZ | 81.53 | |
Kcal/h 50HZ | 70120 | ||
Total input | KW | 21.3 | |
Maximum Running Current | A | 48.5 | |
Power supply | 3N-380V 50HZ | ||
Refrigerant | Name | R22 | |
Charge | Kg | 6.3×2 | |
Control Type | External Balanced Thermostatic Expansion Valve | ||
Compressor | Type | Hermetic scroll or piston | |
Power | Kw | 9.4×2 | |
Cooling water | Flow | M3/h | 17.54 |
P.D. | Kpa | 30 | |
In/Out Pipe Size | G2” | ||
Chilled water | Flow | M3/h | 14.03 |
Tank | M3 | 0.405 | |
In/Out Pipe Size | G2-1/2” | ||
water Pump | Power | Kw | 2.2 |
Pressure | Kpa | 220 | |
Size(L×W×H) | mm | 1880×914×1790 | |
Weight | Kg | 620 | |
Functions:
| Applications:
| Advantages:
|
1. What is the cooling capacity of the Piston Type Water Cooled Chiller?
The chiller offers a cooling capacity of 70120Kcal/h at 50Hz, providing efficient cooling for industrial processes.
2. What types of compressors are used in this water cooled chiller?
This chiller uses hermetic scroll or piston compressors, known for their energy efficiency and reliability.
3. How does the chiller protect its compressor?
The chiller has built-in high/low pressure and overheating protection, ensuring safe operation and extended lifespan.
4. Can this chiller be used in plastic injection molding?
Yes, it is designed for applications like plastic injection molding, die casting, and other industrial processes that require reliable cooling.
5. What is the power supply requirement for this unit?
The unit operates on a 3N-380V, 50Hz power supply, ideal for large-scale industrial facilities.
6. Is there a warranty for this product?
Yes, the chiller comes with a 1-year warranty, and AODE offers lifelong maintenance services for all units.
