Product Details:
| Place of Origin: | Industrial Chiller Factory |
| Brand Name: | AODE |
| Certification: | ISO, CE, ROHS |
| Model Number: | AD- |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $ |
| Packaging Details: | Protective/air bubble film, Wooden case. As client’s require |
| Delivery Time: | Within 20days after receiving |
| Payment Terms: | 30% T/T in advance, 70% balanc |
| Supply Ability: | 500pcs/month |

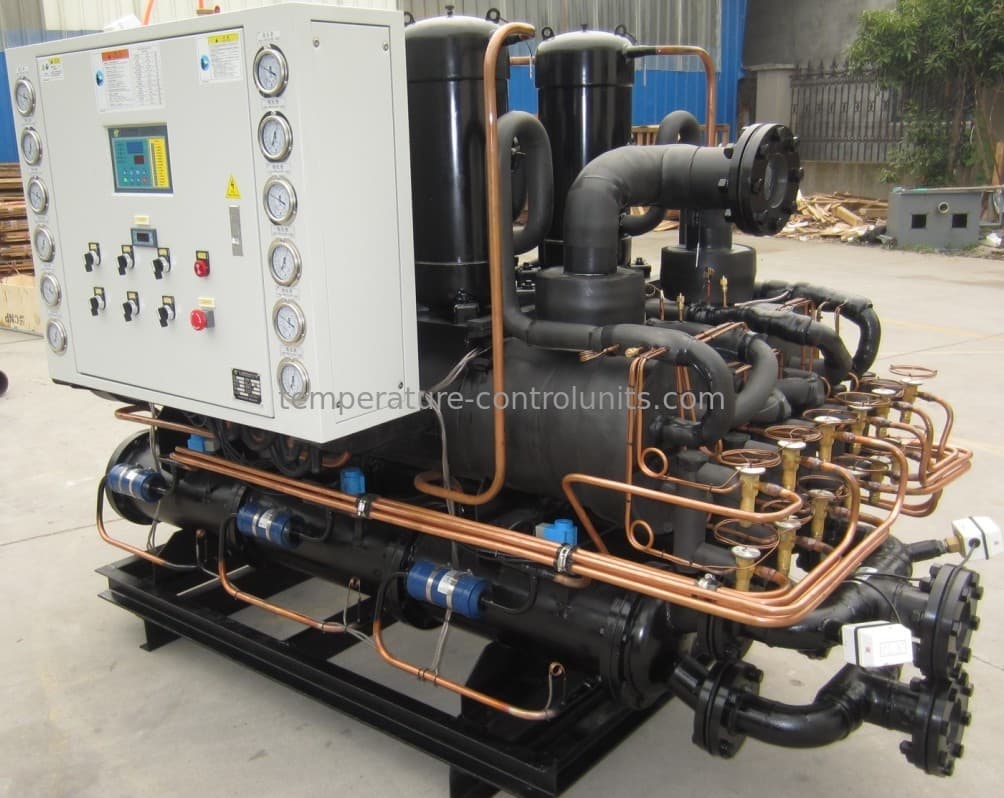

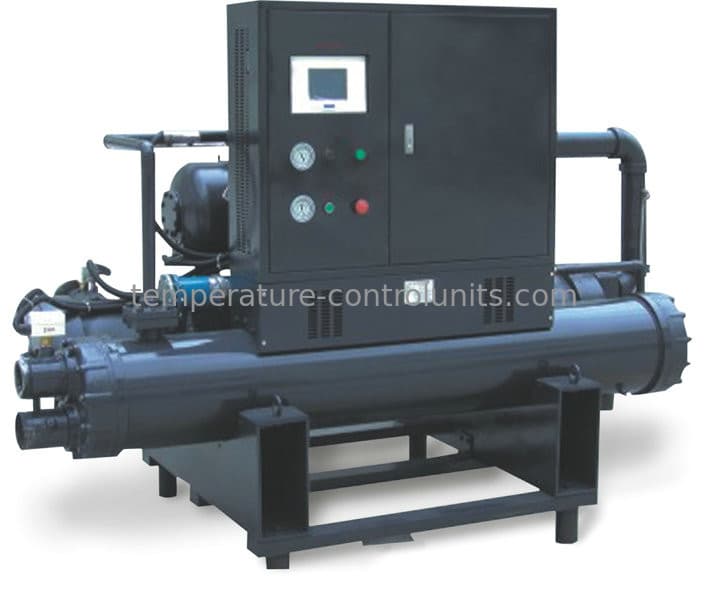

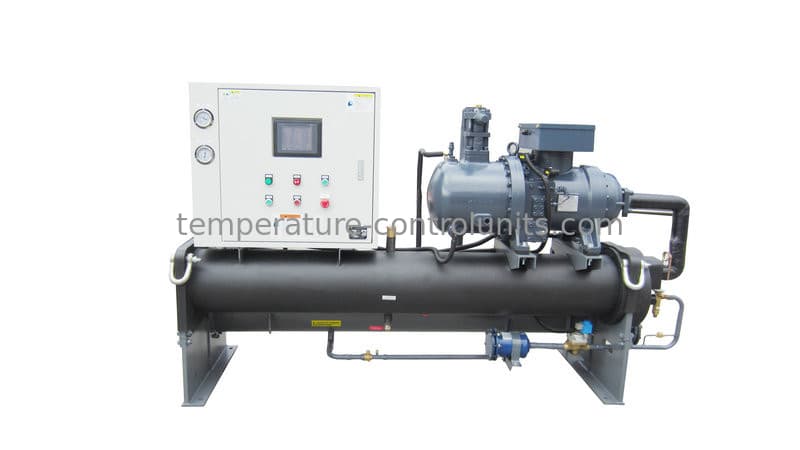

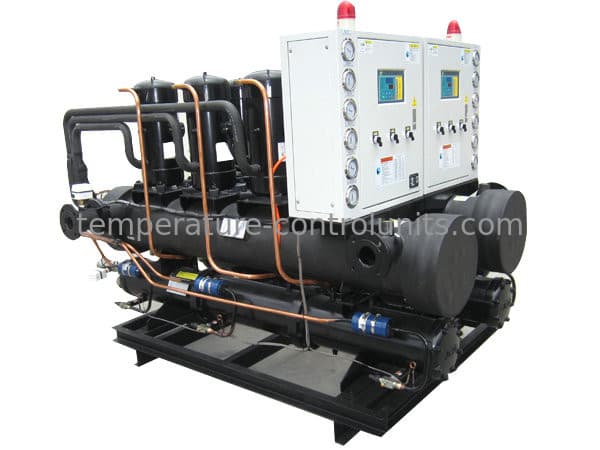

22KW Water Cooled Screw Chiller Semi-enclosed Cooling Machine by AODE is a high-performance cooling solution designed for rubber presses, extruders, and other industrial applications. With a refrigerating capacity of 86,000 Kcal/h and precise temperature control ranging from 7-35℃, this chiller ensures efficient and reliable cooling in demanding environments. Equipped with a semi-enclosed screw-type compressor, high-efficiency heat exchangers, and advanced safety features, it offers consistent cooling with energy savings of more than 30%. CE and ISO certified, this system is built for durability and easy maintenance.
| Product Name: | Water-Cooled Screw Chiller | Brand Name: | AODE |
|---|---|---|---|
| Application: | Rubber Presses, Extruder | Certification: | CE, ISO |
| Compressor Type: | Semi-enclosed Screw-type | Power Input: | 22KW |
| Power Supply: | 3N-50HZ-380V | Temperature Range: | 7-35℃ |
| Theory: | Water Cooled | ||
| High Light: | Water Cooled Screw Chiller, 22KW Water Cooled Screw Chiller, Semi-enclosed Cooling Machine | ||
Quick Detail:1. Power input:22KW 2. Temperature controlled 7-35℃, precision controlled ±2℃ 3. Certification:CE & ISO 4. Compressor type: Semi-enclosed screw-type 5. Refrigerating capacity: 86000Kcal/h 6. Warranty:1 year | Description:
|
ITEM | UNIT | AC-100WS | |
Refrigerating capacity | Kcal/h | 86000 | |
KW | 100 | ||
Input water | KW | 22 | |
Maximum Running Current | A | 38 | |
Energy adjust range | % | 100-75-50-25-0 | |
Power supply | 3N-50HZ-380V | ||
R22 Refrigerant | Filling Volume | kg | 17 |
Control mode | Thermostatic External pressure expansion valve | ||
Compressor | Model | Semi-enclosed screw-type | |
Power | Kw | 22 | |
Evaporator | Model | Shell and Tube | |
Chilled water flow | M3/h | 17.2 | |
Water resistance | Kpa | 33 | |
Water inlet/outlet diameter | DN | 65.0 | |
Condenser | Model | Shell and Tube | |
Chilled water flow | M3/h | 22.4 | |
Water resistance | Kpa | 38 | |
Water inlet/outlet diameter | DN | 65.0 | |
Protecting equipment | Over/low voltage switch, antifreeze switch, safety valve, overload protection devices, coil overheating protector, temperature automatically switch, reverse phase protector | ||
Size(L×W×H) | mm | 2500×750×1800 | |
Weight | kg | 800 | |
Running Weight | Kg | 900 | |
Refrigerating Capacity: 86,000 Kcal/h
Temperature Control: 7-35℃ with ±2℃ precision
Compressor Type: Semi-enclosed screw-type, imported from Europe, America, and Japan (Hanbell, Levin, Beverly)
Energy Efficiency: Energy-saving evaporator and condenser, reducing energy consumption by over 30%
Advanced Protection: Includes high/low voltage protection, internal overheating protection, antifreeze switch, overload protection, and more
Control Options: Optional microcomputer or PLC control with RS485 communication for automated management
Construction: Stainless steel plate, coil-type, shell and tube heat exchangers for superior performance and durability
Safety Features: Fault display for easy diagnostics and repair, even without professional assistance
Applications
| Customization Options
|
Energy Efficiency: The high-efficiency heat exchangers and compressors reduce energy consumption by more than 30%.
Advanced Protection Mechanisms: Multiple safeguards, including high/low voltage, antifreeze, and overload protection, ensure safe operation.
Customization: Flexible configuration options tailored to specific industrial needs.
Durability: Built with durable components from trusted brands like OMRON, FUJI, ABB, and more.
Precision Control: ±2℃ temperature control ensures consistent, reliable cooling performance.
Ease of Maintenance: Fault display system simplifies troubleshooting and maintenance.
The AODE Water-Cooled Screw Chiller has a refrigerating capacity of 86,000 Kcal/h, ideal for industrial applications such as rubber presses and plastic injection molding.
This chiller is equipped with a semi-enclosed screw-type compressor, imported from Europe, America, and Japan, providing superior cooling performance.
The chiller offers a temperature control range from 7℃ to 35℃, with precision control at ±2℃ for reliable and consistent cooling.
This chiller is ideal for industries like rubber presses, extruders, plastic injection molding, die casting, chemical engineering, and more.
Yes, the chiller is designed with high-efficiency evaporators and condensers, which can save over 30% in energy compared to traditional systems.
The chiller includes multiple safety features such as high/low voltage protection, internal overheating protection, overload protection, and a fault display system for easy maintenance.
