Product Details:
| Place of Origin: | Chiller Manufacturer |
| Brand Name: | AODE |
| Certification: | ISO, CE, ROHS |
| Model Number: | AC-05W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $ |
| Packaging Details: | Protective/air bubble film, Wooden case. As client’s require |
| Delivery Time: | Within 20days after receiving |
| Payment Terms: | 30% T/T in advance, 70% balanc |
| Supply Ability: | 500pcs/month |

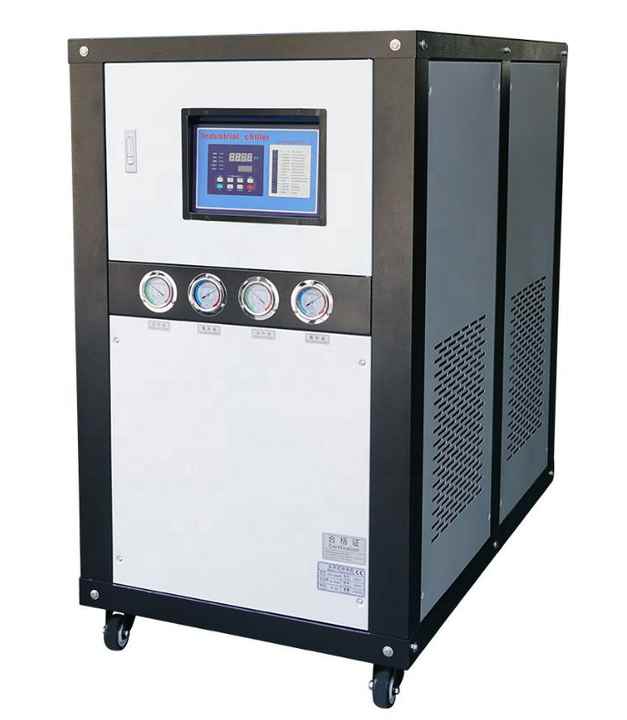

13690 Kcal/h 50HZ AC-05W Industrial Water Cooled Chiller Unit With Hermetic Scroll Or Piston Type by AODE is designed for optimal performance in die casting, printing, and various industrial applications. Featuring a hermetic scroll or piston compressor, it offers advanced high/low pressure protection and overheating protection for the compressor. Its efficient cooling capacity of 13690 Kcal/h and low-energy consumption make it ideal for processes requiring precise temperature control. Certified by CE & ISO, this chiller promises high reliability with safety features like low water level alarm, low water temperature alarm, and energy-saving technology that reduces consumption by over 30%. Perfect for industries like die casting, printing, and chemical engineering.
| Product Name: | Industrial Water Cooled Chiller | Brand Name: | AODE |
|---|---|---|---|
| Application: | Die Casting, Pringting | Certification: | CE, ISO |
| Compressor Type: | Hermetic Scroll Or Piston | Power Supply: | 3N-380V 50HZ |
| Theory: | Water Cooled | ||
| High Light: | Industrial Water Cooled Chiller, 13690 Kcal/h 50HZ water cooled chiller, Industrial Water Cooled Chiller Unit, Industrial Water Cooled Chiller With Hermetic Scroll, Piston Type Water Cooled Chiller | ||
High/Low pressure protection for the compressor and overheating protection inside the machine.
Advanced imported compressors from Europe, the US, and Japan for better cooling efficiency.
SUS304 stainless steel water tank for corrosion resistance.
RS485 communication function for automatic management (optional).
Efficient heat exchangers (coil, shell, and tube) for optimal heat transfer.
Energy-efficient evaporator and condenser, reducing energy consumption by over 30%.
ITEM | UNIT | AC-05W | |
Cooling capacity | KW50HZ | 15.91 | |
Kcal/h 50HZ | 13690 | ||
Total input | KW | 4.5 | |
Maximum Running Current | A | 10.4 | |
Power supply | 3N-380V 50HZ | ||
Refrigerant | Name | R22 | |
Charge | Kg | 2.8 | |
Control Type | Capillary Tube | ||
Compressor | Type | Hermetic scroll or piston | |
Power | Kw | 3.75 | |
Cooling water | Flow | M3/h | 3.42 |
In/Out Pipe Size | G1” | ||
Chilled water | Flow | M3/h | 2.74 |
Tank | M3 | 0.065 | |
In/Out Pipe Size | G1” | ||
water Pump | Power | Kw | 0.75 |
Pressure | Kpa | 290 | |
Size(L×W×H) | mm | 1080×580×1230 | |
Weight | Kg | 150 | |
Applications:
| Advantages:
| Customizations:
|
What is the cooling capacity of the Industrial Water Cooled Chiller?
The chiller offers a cooling capacity of 13690 Kcal/h at 50HZ.
What applications is this chiller suitable for?
It is ideal for die casting, printing, plastic injection molding, and chemical engineering.
What protection features are included?
The chiller includes high/low pressure protection, overheating protection, and low water level alarms.
Can the chiller be used in different countries?
Yes, it supports a 3N-380V 50HZ power supply, suitable for global use.
How efficient is the chiller in terms of energy consumption?
It features energy-saving technology, reducing energy consumption by over 30%.
What certifications does this product have?
The Industrial Water Cooled Chiller is CE and ISO certified for quality and safety.
