Product Details:
| Place of Origin: | Industrial Chiller Factory |
| Brand Name: | AODE |
| Certification: | ISO, CE, ROHS |
| Model Number: | AC-30WD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $ |
| Packaging Details: | Protective/air bubble film, Wooden case. As client’s require |
| Delivery Time: | Within 20days after receiving |
| Payment Terms: | 30% T/T in advance, 70% balanc |
| Supply Ability: | 500pcs/month |
Water Chiller Unit, High-Efficiency Water Chiller Unit, 3N-380V 50HZ Water Chiller Unit, Energy-Saving Water Chiller Unit, Water Chiller Unit with Free Cooling made from AODE are high quality, buy High-Efficiency 3N-380V 50HZ Energy-Saving Water Chiller Unit with Free Cooling Dual Compressor from us at factory price, AODE ia s professional industrial chiller supplier with 20 years experiences from China.

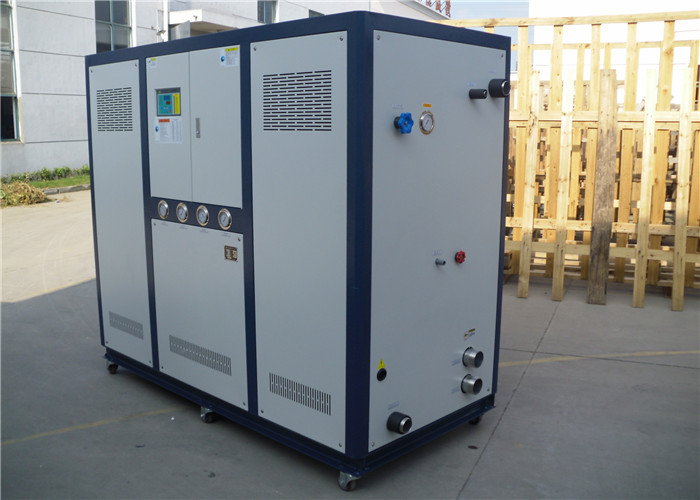

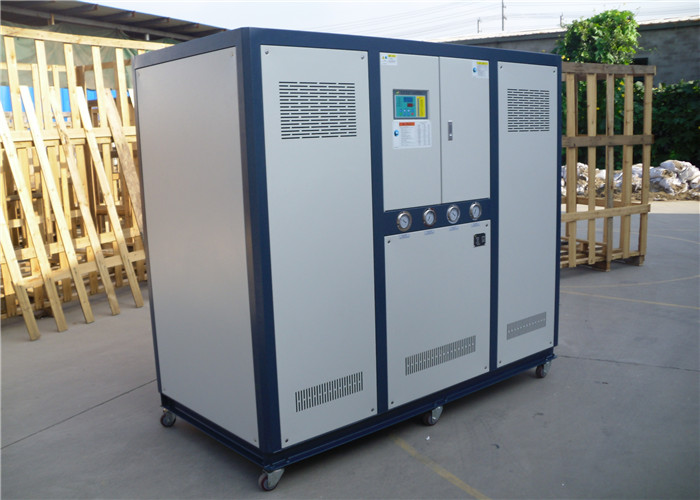

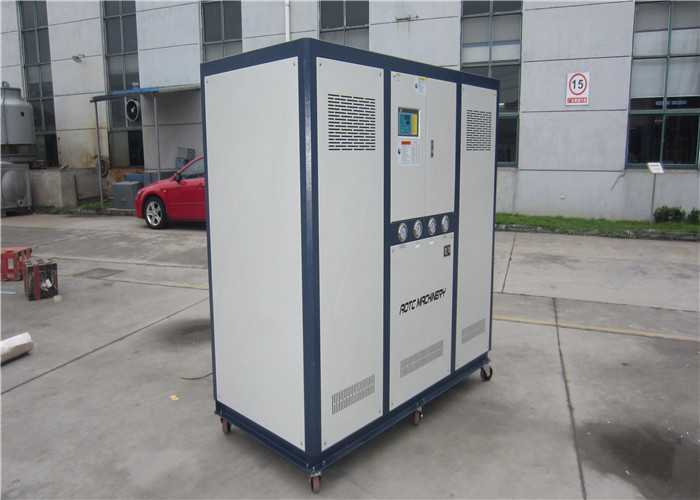

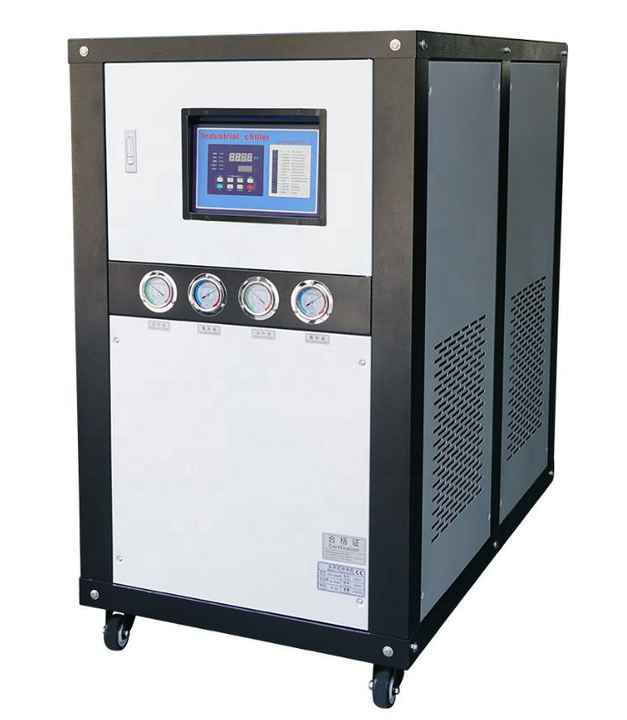

This energy-saving water chiller unit is designed for high-performance cooling applications, offering free cooling capabilities for optimized efficiency. It features hermetic scroll or piston compressors, ensuring stable and reliable operation. The unit delivers a cooling capacity of 99.19kW (85,303 Kcal/h) at 50Hz and operates on 3N-380V 50Hz power supply. With advanced heat exchangers, RS485 communication for automation, and over 30% energy savings, this unit is ideal for plastic injection molding, die casting, and industrial cooling processes. Built with high-density insulation materials, it guarantees superior cooling performance with low water level and temperature alarms for safety.
| Product Name: | Water Chiller Unit | Brand Name: | AODE |
|---|---|---|---|
| Application: | Plastic Injection Molding|Rubber Presses|Extruder | Certification: | CE|ISO |
| Compressor Type: | Hermetic Scroll Or Piston | Power Supply: | 3N-380V 50HZ |
| Theory: | Water Cooled | ||
| High Light: | Water Chiller Unit, High-Efficiency Water Chiller Unit, 3N-380V 50HZ Water Chiller Unit, Energy-Saving Water Chiller Unit, Water Chiller Unit with Free Cooling | ||
ITEM | UNIT | AC-30WT | |
Cooling capacity | KW50HZ | 99.19 | |
Kcal/h 50HZ | 85303 | ||
Total input | KW | 25.6 | |
Maximum Running Current | A | 58.3 | |
Power supply | 3N-380V 50HZ | ||
Refrigerant | Name | R22 | |
Charge | Kg | 5×3 | |
Control Type | External Balanced Thermostatic Expansion Valve | ||
Compressor | Type | Hermetic scroll or piston | |
Power | Kw | 7.5×3 | |
Cooling water | Flow | M3/h | 21.32 |
P.D. | Kpa | 36 | |
In/Out Pipe Size | G2-1/2” | ||
Chilled water | Flow | M3/h | 17.06 |
Tank | M3 | 0.405 | |
In/Out Pipe Size | G2-1/2” | ||
water Pump | Power | Kw | 4 |
Pressure | Kpa | 250 | |
Size(L×W×H) | mm | 2130×940×1785 | |
Weight | Kg | 690 | |
| Feature | Description |
|---|---|
| Energy-Saving Design | Optimized refrigerant system reduces energy consumption by over 30% |
| Dual Compressor Operation | Two independent compressor heads allow for flexible operation and extended lifespan |
| High-Performance Cooling | Provides up to 99.19kW cooling capacity with a temperature range suited for industrial processes |
| Free Cooling Function | Reduces operational costs by leveraging ambient temperature cooling |
| Advanced Safety Protection | Includes high/low pressure protection, overheat alarms, and automatic failure detection |
| Industrial-Grade Components | Uses premium brands like OMRON, FUJI, and ABB for superior reliability |
Plastic injection molding: Maintains stable cooling to improve production quality
Die casting & metal processing: Provides temperature control for aluminum and magnesium alloys
Rubber presses & laminating machines: Ensures optimal thermal regulation
Chemical & pharmaceutical industries: Supports precision cooling for reactors and heat exchangers
Printing & dyeing processes: Controls temperature for uniform ink drying
Food & beverage production: Ensures stable cooling in processing lines
| Benefit | Description |
|---|---|
| High Energy Efficiency | Free cooling technology lowers energy costs |
| Reliable Performance | Durable hermetic compressors ensure long-term operation |
| Smart Automation | Optional PLC or microcomputer control for real-time monitoring |
| Customizable Design | Configurable for different cooling capacities and applications |
| Easy Maintenance | Fault display and user-friendly interface simplify upkeep |
| Enhanced Safety | Multi-level protections safeguard the system and operators |
| Factor | Details |
|---|---|
| Cooling Capacity | Customizable from small-scale to high-power industrial needs |
| Compressor Type | Choice between hermetic scroll and piston compressors |
| Refrigerant Options | Available with different refrigerants for environmental compliance |
| Automation Features | Optional PLC and RS485 communication for remote control |
| Construction Materials | Choice of standard or reinforced stainless steel components |
| Pump & Water Flow Adjustments | Configurable flow rates and pump pressure based on industry requirements |
1. What industries can benefit from this energy-saving water chiller unit?
This chiller is ideal for plastic molding, die casting, chemical processing, rubber manufacturing, printing, and food production.
2. How does the free cooling function help reduce energy costs?
It utilizes ambient air to cool the water, reducing the load on compressors and cutting energy consumption.
3. What kind of maintenance does this water chiller require?
Routine maintenance includes filter cleaning, refrigerant level checks, and compressor inspections to ensure optimal performance.
4. Can this chiller operate in extreme temperatures?
Yes, it is designed for stable operation across various temperature conditions, ensuring reliability even in demanding environments.
5. What control systems are available?
It supports PLC and microcomputer-based control for precise temperature management and automation.
6. How customizable is this water chiller unit?
It offers multiple compressor options, different refrigerants, and advanced automation features, making it adaptable for various applications.
