Product Details:
| Place of Origin: | Industrial Chiller Factory |
| Brand Name: | AODE |
| Certification: | ISO, CE, ROHS |
| Model Number: | AC-04A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $ |
| Packaging Details: | Protective/air bubble film, Wooden case. As client’s require |
| Delivery Time: | Within 20days after receiving |
| Payment Terms: | 30% T/T in advance, 70% balanc |
| Supply Ability: | 500pcs/month |

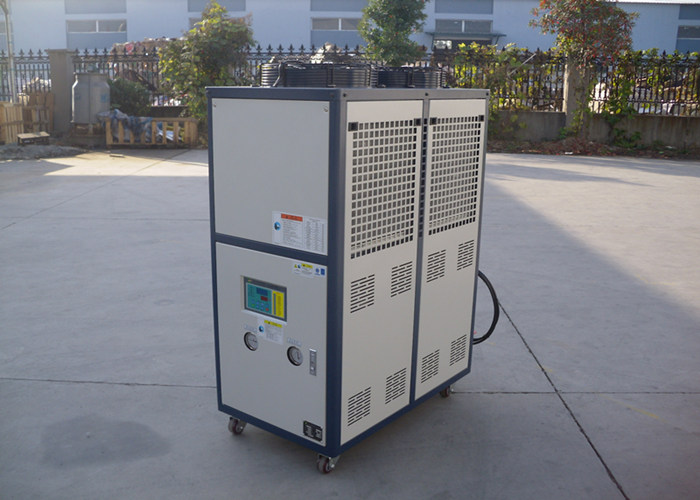

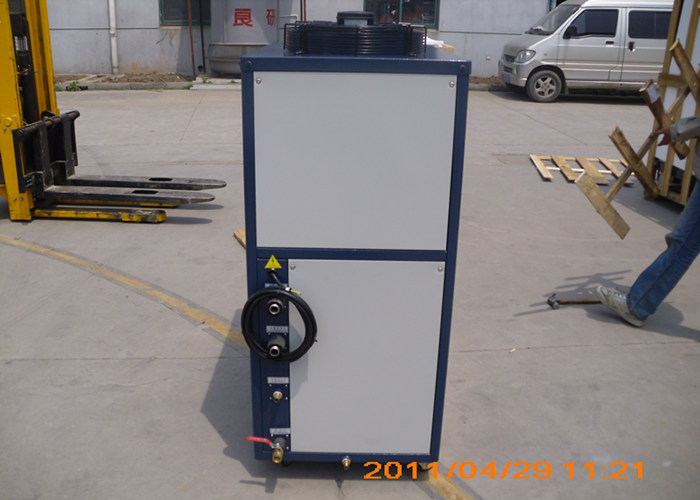

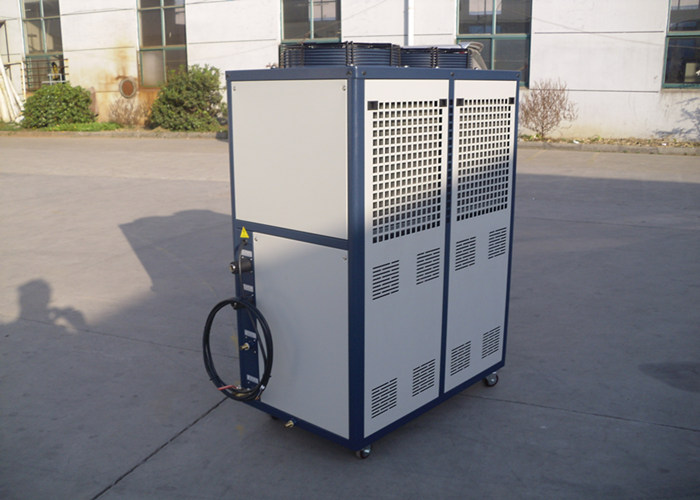

The Small Air Cooled Chiller is a high-efficiency industrial water cooling machine with a cooling capacity of 10.90KW (9374Kcal/h, 50Hz), ideal for plastic injection molding, die casting, and chemical engineering applications. Equipped with a hermetic scroll or piston compressor, it ensures stable temperature control and energy savings of over 30% through a highly efficient evaporator and condenser. The SUS304 stainless steel water tank prevents corrosion and leakage, while built-in high/low pressure and overheating protection enhance operational safety. This compact and reliable chiller helps businesses improve production efficiency and maintain optimal cooling performance.
| Product Name: | Small Air Cooled Chiller | Brand Name: | AODE |
|---|---|---|---|
| Application: | Plastic Injection Molding|Chemical | Certification: | CE|ISO |
| Compressor Type: | Hermetic Scroll Or Piston | Power Supply: | 3N-380V 50HZ |
| Theory: | Air Cooled | ||
| High Light: | Small Air Cooled Chiller, 10.90KW Small Air Cooled Chiller, 9374Kcal/h, Small Air Cooled Chiller, Small Air Cooled Chiller with Hermetic Scroll Compressor | ||
ITEM | UNIT | AC-04A | |
Cooling capacity | KW50HZ | 10.90 | |
Kcal/h 50HZ | 9374 | ||
Total input | KW | 4.5 | |
Maximum Running Current | A | 10.9 | |
Power supply | 3N-380V 50HZ | ||
Refrigerant | Name | R22 | |
Charge | Kg | 3.5 | |
Control Type | Capillary Tube | ||
Compressor | Type | Hermetic Scroll or Piston | |
Power | Kw | 3 | |
Air Flow | M3/h | 4000 | |
Chilled water | Flow | M3/h | 1.87 |
Tank | M3 | 0.06 | |
In/Out Pipe Size | G3/4” | ||
water Pump | Power | Kw | 0.375 |
Pressure | Kpa | 242 | |
Size(L×W×H) | mm | 945×550×1370 | |
Weight | Kg | 160 | |
High Cooling Efficiency: 10.90KW (9374Kcal/h) cooling capacity with a hermetic scroll or piston compressor ensures stable and efficient performance.
Durable and Corrosion-Resistant: SUS304 stainless steel water tank prevents corrosion and leakage for long-term reliability.
Energy-Saving Design: High-efficiency evaporator and condenser reduce energy consumption by 30%.
Intelligent Control System: Supports micro-computer or PLC control with RS485 communication for automated management.
Advanced Safety Protections: Equipped with high/low pressure protection, overheating prevention, and low water level and temperature alarms.
Reliable Components: Uses OMRON, FUJI, TE, LG, MOELLER, and SCHNEIDER electrical parts for stable and long-lasting operation.
The Small Air Cooled Chiller is ideal for industries requiring precise temperature control and continuous cooling, such as:
Plastic Injection Molding: Ensures consistent cooling for molds, improving product quality and reducing defects.
Die Casting & Metal Processing: Helps maintain stable temperatures for aluminum and magnesium alloy production.
Chemical & Pharmaceutical Industry: Supports reactors, heat exchangers, and mixing processes requiring strict temperature control.
Printing & Dyeing: Stabilizes temperatures for drying and dyeing processes to enhance print quality.
Rubber & Laminating Presses: Maintains optimal cooling for hot rolling machines, jacketed vessels, and molding presses.
High Efficiency with Compact Size: Provides powerful cooling in a space-saving design.
Industry-Leading Energy Savings: Reduces operational costs with 30% improved energy efficiency.
Advanced Automation: RS485 communication enables seamless integration with production lines.
Enhanced Durability: Oxygen-free welding for smooth copper pipes, reducing blockages and extending lifespan.
Before purchasing, businesses should evaluate:
Cooling Requirements: Ensure 10.90KW cooling capacity matches operational needs.
Power Supply Compatibility: Requires 3N-380V 50Hz power input.
Space and Ventilation: Needs proper installation space for air circulation and heat dissipation.
Automation Integration: If PLC control and RS485 communication are needed, select the corresponding model.
Water Flow Requirements: Ensure that the pump capacity (1.87m³/h, 242Kpa pressure) meets production needs.
Compressor Type: Choose between hermetic scroll or piston compressor based on efficiency needs.
Control System: Select between micro-computer or PLC control with RS485 function.
Refrigerant Options: Can be configured for R22, R134a, or R407C refrigerants.
Pump Customization: Upgrade to a higher pressure pump for enhanced circulation.
Installation:
| Usage:
|
What are the main benefits of using a Small Air Cooled Chiller?
It provides efficient cooling with low energy consumption, ensuring stable and precise temperature control for industrial applications.
How does the Small Air Cooled Chiller improve energy efficiency?
It features a high-efficiency evaporator and condenser, reducing energy consumption by 30% while maintaining powerful cooling performance.
What industries benefit the most from this chiller?
It is widely used in plastic injection molding, die casting, chemical processing, printing, rubber pressing, and metalworking industries.
What safety features does this chiller include?
It comes with high/low pressure protection, overheating prevention, low water level alarms, and low water temperature alerts to ensure safe operation.
Can the Small Air Cooled Chiller be customized for specific requirements?
Yes, it offers customization for compressor type, control system (micro-computer or PLC), refrigerant type, and pump capacity to meet specific needs.
What should businesses consider before purchasing this chiller?
Companies should assess cooling capacity, power supply compatibility, space requirements, automation needs, and water flow specifications before making an investment.
