Product Details:
| Place of Origin: | Air Chiler Factory |
| Brand Name: | AODE |
| Certification: | ISO, CE, ROHS |
| Model Number: | AC-60AE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $ |
| Packaging Details: | Protective/air bubble film, Wooden case. As client’s require |
| Delivery Time: | Within 20days after receiving |
| Payment Terms: | 30% T/T in advance, 70% balanc |
| Supply Ability: | 500pcs/month |

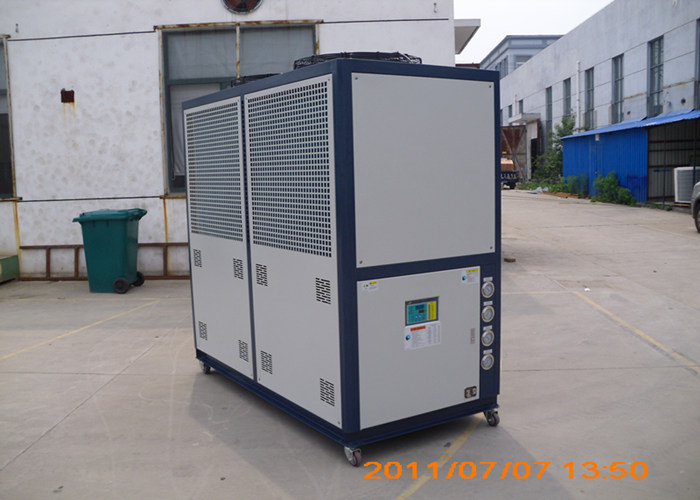

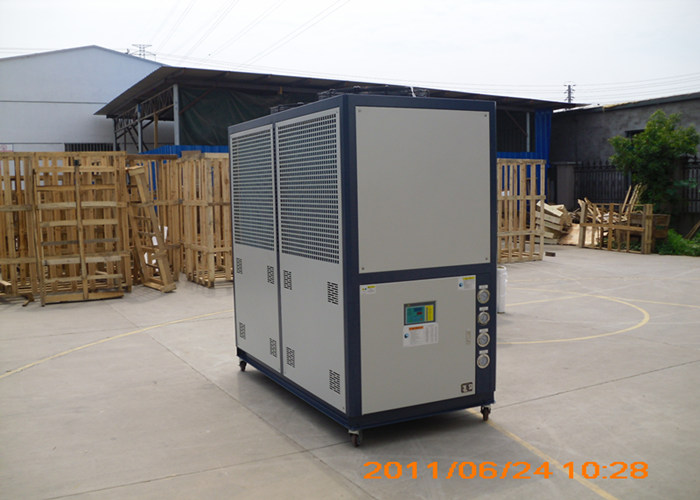

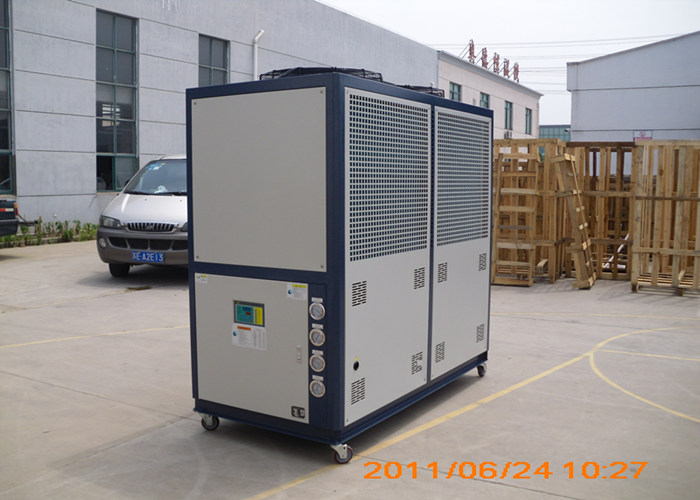

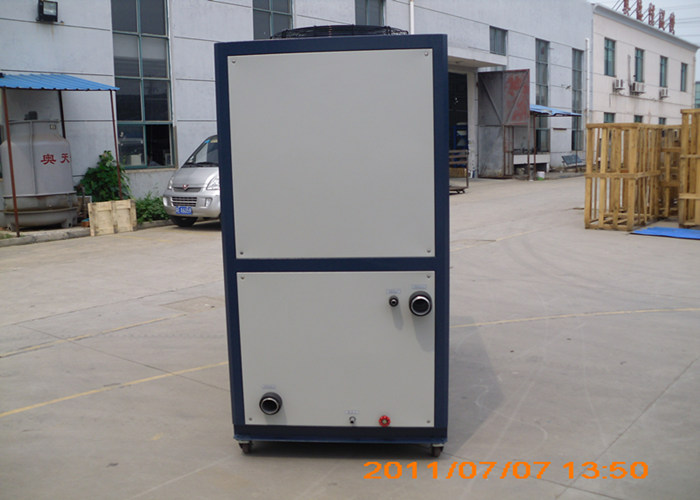

This Air Cooled Scroll Chiller is a high-performance industrial water chiller designed for die casting, injection molding, printing, and extrusion processes. With a cooling capacity of 181.68KW (156249Kcal/h at 50Hz), it ensures efficient heat dissipation, stabilizing production environments and improving product quality. Featuring hermetic scroll or piston compressors, low water level and temperature alarms, and high/low-pressure protection, it offers safe, reliable, and energy-efficient cooling. The stainless steel SUS304 water tank prevents corrosion, while components from Danfoss and Alco enhance system durability. Ideal for temperature-sensitive industrial applications, this chiller optimizes process stability, reduces downtime, and enhances production efficiency.
| Product Name: | Air Cooled Scroll Chiller | Brand Name: | AODE |
|---|---|---|---|
| Application: | Die Casting|Pringting|Extruder | Certification: | CE|ISO |
| Compressor Type: | Hermetic Scroll Or Piston | Power Supply: | 3N-380V 50HZ |
| Theory: | Air Cooled | ||
| High Light: | Air Cooled Scroll Chiller, 181.68KW Air Cooled Scroll Chiller, 3N-380V 50HZ Air Cooled Scroll Chiller, High Efficiency Air Cooled Scroll Chiller | ||
ITEM | UNIT | AC-60AE | |
Cooling capacity | KW50HZ | 181.68 | |
Kcal/h 50HZ | 156249 | ||
Total input | KW | 68.8 | |
Maximum Running Current | A | 143.1 | |
Power supply | 3N-380V 50HZ | ||
Refrigerant | Name | R22 | |
Charge | Kg | 9.96×5 | |
Control Type | External Balanced Thermal Expansion Valve | ||
Compressor | Type | Hermetic Scroll or Piston | |
Power | Kw | 9×5 | |
Air Flow | M3/h | 66000 | |
Chilled water | Flow | M3/h | 30.52 |
Tank | M3 | 0.7 | |
In/Out Pipe Size | G3-1/2” | ||
water Pump | Power | Kw | 4 |
Pressure | Kpa | 250 | |
Size(L×W×H) | mm | 3556×2200×2210 | |
Weight | Kg | 1420 | |
The 181.68KW Air Cooled Scroll Chiller is ideal when businesses need a reliable, energy-efficient, and low-maintenance cooling solution for industrial applications such as die casting, plastic injection molding, printing, and extruders. It is particularly well-suited for environments where water-cooled chillers are impractical due to limited water resources or space constraints. The system provides consistent temperature control, easy installation, and strong performance, making it an excellent option for industries requiring precise process cooling.
Powerful Cooling Capacity – 181.68KW (156,249 Kcal/h) for high-efficiency cooling in industrial processes.
Reliable Compressor Technology – Utilizes hermetic scroll or piston compressors for stable operation and long lifespan.
Advanced Protection System – Features high/low pressure protection, overheating prevention, and low water level alarms to ensure safety.
Energy Efficient – Designed with an external balanced thermal expansion valve, high-density insulation, and optimized refrigerant control to reduce energy consumption.
Durable Construction – Built with SUS304 stainless steel water tanks to prevent corrosion and leakage.
Low Maintenance & Easy Installation – The air-cooled design eliminates the need for a cooling tower, reducing maintenance costs.
Compressor Type – Choose between hermetic scroll or piston compressors depending on operational needs.
Refrigerant Options – Standard R22 but can be customized with eco-friendly refrigerants (R134a, R407C, etc.).
Pump Selection – Customizable water pump pressure and power for different process cooling requirements.
Control System – Optional PLC-based control with RS485 communication for remote monitoring and automation.
Frame and Casing – Material and thickness customization to meet industrial durability standards.
Cooling Load Requirements – Ensure the 181.68KW cooling capacity aligns with your application needs.
Power Supply Compatibility – Check if your facility supports 3N-380V 50HZ power input.
Ambient Conditions – Consider the temperature and humidity levels in your operating environment.
Space Availability – The unit measures 3556×2200×2210mm, so ensure adequate installation space.
Energy Efficiency – Evaluate long-term energy consumption to optimize operational costs.
Maintenance & Serviceability – Choose a model with easy access to components and reliable after-sales support.
1. What is the cooling capacity of this Air Cooled Scroll Chiller?
This chiller has a cooling capacity of 181.68KW (156,249 Kcal/h), making it ideal for industrial cooling applications.
2. What type of compressors does this chiller use?
It features hermetic scroll or piston compressors, ensuring high efficiency, reliability, and durability in demanding environments.
3. What refrigerant does this chiller use?
The standard refrigerant is R22, but it can be customized with eco-friendly refrigerants like R134a or R407C upon request.
4. What safety features are included in this chiller?
The unit includes high/low pressure protection, overheating prevention, low water level alarms, and a low water temperature alarm, ensuring safe and stable operation.
5. What industries is this chiller best suited for?
It is widely used in die casting, plastic injection molding, printing, extruder applications, and other industrial cooling processes.
6. What are the installation requirements for this chiller?
The unit requires 3N-380V 50HZ power supply, sufficient ventilation for heat dissipation, and a stable water connection for the cooling process.
