Product Details:
| Place of Origin: | Mold Controller Manufacturer |
| Brand Name: | AODE |
| Certification: | ISO, CE, ROHS |
| Model Number: | AC-12WD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $ |
| Packaging Details: | Protective/air bubble film, Wooden case. As client’s require |
| Delivery Time: | Within 20days after receiving |
| Payment Terms: | 30% T/T in advance, 70% balanc |
| Supply Ability: | 500pcs/month |

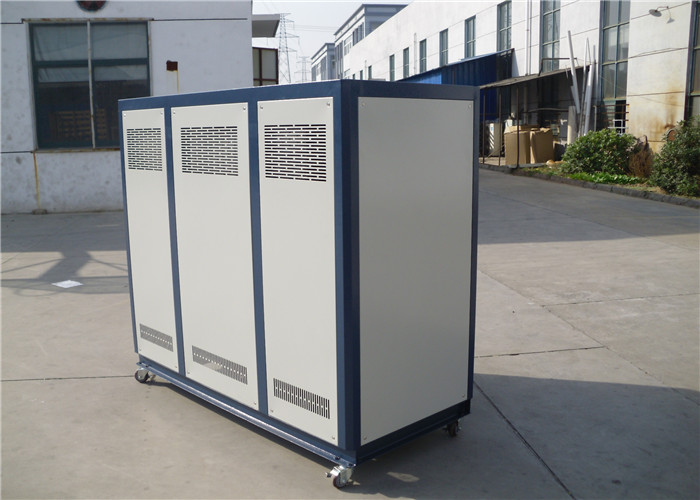

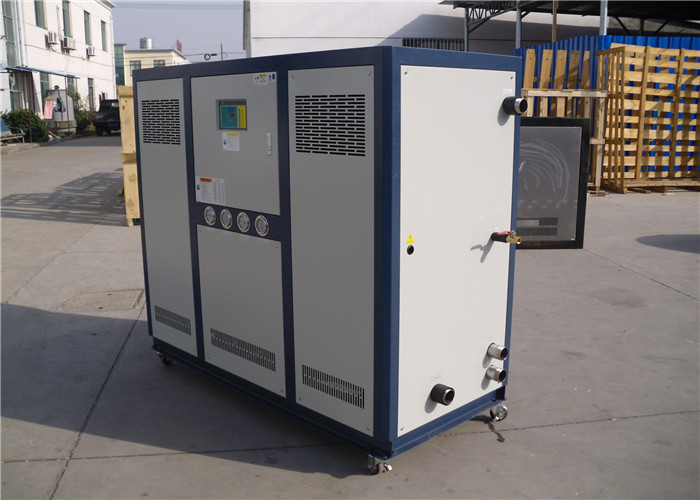

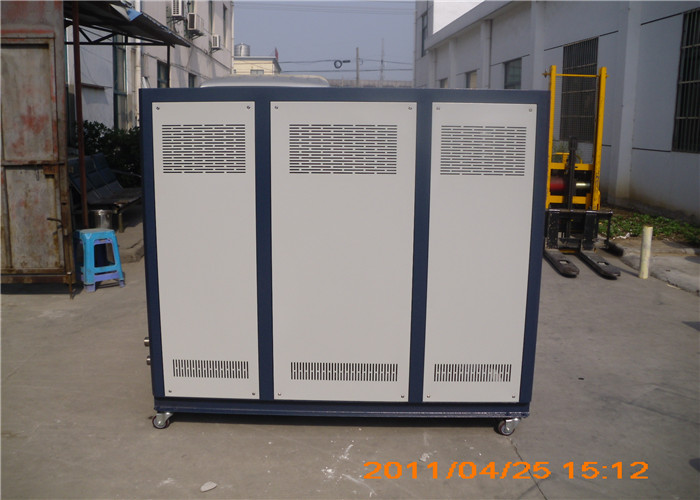

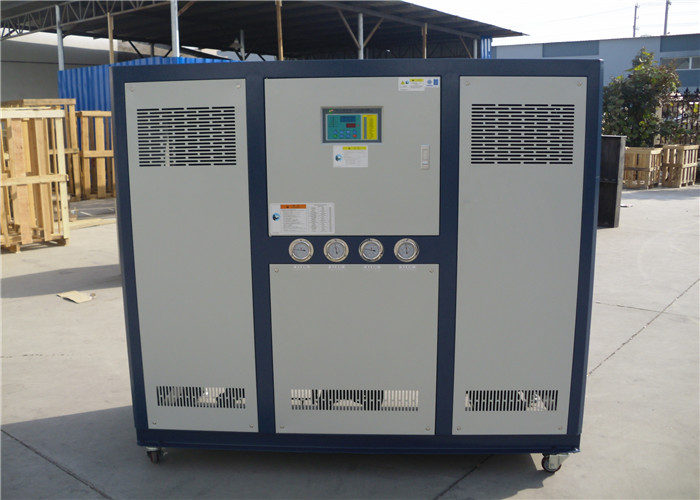

Air Cooled Industrial Chiller 38.37KW 32994Kcal/h Scroll Compressor for Injection Molding is a high-efficiency cooling system designed for industrial applications, including plastic injection molding, die casting, and chemical processing. It features a hermetic scroll or piston compressor, a cooling capacity of 38.37KW (32994Kcal/h at 50Hz), and operates on a 3N-380V 50Hz power supply. Equipped with low water level and temperature alarms, high/low pressure protection, and overheating prevention, it ensures stable and safe operation. The stainless steel SUS304 water tank prevents corrosion and leakage, while the high-density heat insulation improves energy efficiency. It uses R22 refrigerant and includes a PLC or micro-computer control system for automatic management. Ideal for extruder cooling, aluminum alloy processing, and hot rolling machines, this chiller provides efficient, reliable, and low-maintenance cooling performance for industrial environments.
| Product Name: | Industrial Water Chiller | Brand Name: | AODE |
|---|---|---|---|
| Application: | Plastic Injection Molding|Extruder | Certification: | CE|ISO |
| Compressor Type: | Hermetic Scroll Or Piston | Power Supply: | 3N-380V 50HZ |
| Theory: | Water Cooled | ||
| High Light: | Air Cooled Industrial Chiller, Air Cooled Industrial Chiller 38.37KW, 32994Kcal/h Air Cooled Industrial Chiller, Air Cooled Industrial Chiller Scroll Compressor, Air Cooled Industrial Chiller for Injection Molding | ||
ITEM | UNIT | AC-12WD | |
Cooling capacity | KW50HZ | 38.37 | |
Kcal/h 50HZ | 32994 | ||
Total input | KW | 10.1 | |
Maximum Running Current | A | 24.6 | |
Power supply | 3N-380V 50HZ | ||
Refrigerant | Name | R22 | |
Charge | Kg | 3.4×2 | |
Control Type | External Balanced Thermostatic Expansion Valve | ||
Compressor | Type | Hermetic scroll or piston | |
Power | Kw | 4.5×2 | |
Cooling water | Flow | M3/h | 8.24 |
In/Out Pipe Size | G2” | ||
Chilled water | Flow | M3/h | 6.59 |
Tank | M3 | 0.188 | |
In/Out Pipe Size | G2” | ||
water Pump | Power | Kw | 1.5 |
Pressure | Kpa | 205 | |
Size(L×W×H) | mm | 1600×750×1445 | |
Weight | Kg | 310 | |
High Cooling Efficiency – With a cooling capacity of 38.37KW (32994Kcal/h), it ensures fast and stable cooling for industrial processes.
Reliable Scroll Compressor – Equipped with a hermetic scroll or piston compressor, offering high efficiency and durability.
Advanced Safety Protections – Features high/low pressure protection, overheating protection, low water level alarm, and temperature alarms for safe operation.
Corrosion-Resistant Materials – Uses a SUS304 stainless steel water tank and high-quality copper pipes for long-lasting performance.
Energy Saving Design – Incorporates a highly efficient evaporator and condenser, reducing energy consumption by over 30%.
Smart Control System – Supports PLC or micro-computer control with RS485 communication, enabling automated operation and monitoring.
Plastic Injection Molding – Maintains precise temperature control for consistent molding quality.
Extrusion & Die Casting – Prevents overheating and ensures stable metal processing.
Chemical & Pharmaceutical Processing – Provides reliable cooling for chemical reactions and storage.
Metal Processing & Heat Treatment – Cools down aluminum and magnesium alloy components.
Printing, Dyeing & Textile Industries – Maintains optimal temperatures for machinery and production processes.
Food & Beverage Industry – Used in cooling applications for food processing and storage.
Compressor Type: Choose between hermetic scroll or piston compressors based on cooling requirements.
Refrigerant Options: Standard R22, with eco-friendly refrigerants available upon request.
Control System: Standard PLC/micro-computer control, upgradeable to remote monitoring with RS485 communication.
Cooling Capacity: Customizable cooling power to suit different industrial applications.
Pump & Piping: Various pump power levels and pipe sizes for tailored flow rate requirements.
Voltage & Frequency: Available in different power supply options based on country-specific needs.
Cooling Capacity Requirements – Ensure the chiller meets the specific cooling load for your industrial process.
Space & Installation Needs – Check the chiller’s dimensions (1600×750×1445mm) for proper placement.
Power Supply Compatibility – Confirm that the available power supply matches the 3N-380V 50Hz requirement.
Energy Efficiency – Look for features like high-efficiency evaporator and condenser to save operational costs.
Safety Features – Ensure it includes pressure protection, overheating alarms, and water level sensors.
Maintenance & Service – Consider warranty options (1 year) and the availability of spare parts and technical support.
A1: It features a hermetic scroll or piston compressor, stainless steel SUS304 water tank, and a high-efficiency evaporator/condenser, ensuring long-term stable cooling with 30% energy savings.
A2: The chiller has high/low pressure protection, overheating prevention, and low water level alarms, ensuring safe operation under various conditions.
A3: It is widely used in plastic injection molding, extrusion, die casting, chemical processing, metalworking, printing, and food processing industries.
A4: Yes, it offers custom compressor types, refrigerants, control systems, power supply options, and different cooling capacities to suit various industrial needs.
A5: Regular cleaning of the condenser, checking water levels, monitoring pressure alarms, and ensuring proper ventilation will keep the chiller operating efficiently.
A6: With a highly efficient evaporator and condenser, it reduces power consumption by over 30%, making it an excellent cost-saving solution for industrial cooling.
