AODE is a leading manufacturer of Water Temperature Control Unit, with over 20 years of expertise in the research, design, and manufacturing of temperature control equipment. Established in 2004, our company is headquartered in Kunshan, Jiangsu, where we operate a state-of-the-art 14,000-square-meter industrial park. We also have fully operational chiller factories in Guangzhou, Shenzhen, and Tianjin, ensuring nationwide manufacturing capabilities and rapid service response.
Our Water Temperature Control Units include both Standard and High Temperature models, engineered for precise and efficient thermal management in injection molding, die casting, and extrusion processes. These units are designed to deliver stable temperature control, improve product quality, extend mold lifespan, and enhance energy efficiency across industrial applications.
Below, you’ll find a detailed overview of AODE’s Water Temperature Control Unit solutions, including key features and core technical specifications. We invite you to explore more and welcome you to contact us anytime for the latest product information and win-win cooperation opportunities.

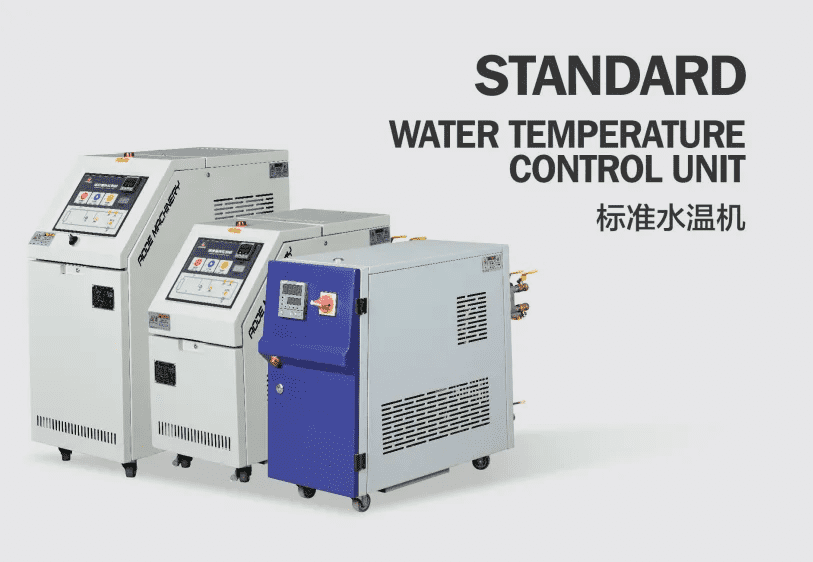

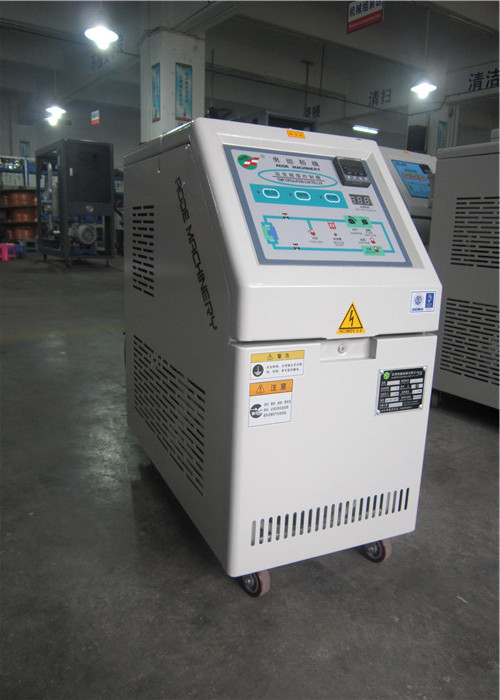

Features of standard water temperature control unit◆ Explosion-proof equipment (optional) ◆ Air blowing and return water function (optional) ◆ Display for return water temperature ◆ Automatic air-exhausting function after startup ◆ Switchover of heating power ◆ Instant cooling return oil shut-down function (optional) ◆ RS485 communication function for automated management (optional) ◆ BY-PASS pressure release loop for hot water ◆ Customizable multi-point temperature control unit ◆ Customizable horsepower and heating power of oil pump ◆ Brands SIEMENS.Weidmuller, LS , MOELLER, ABB and WEST for electric appliances ◆ Range of temperature control: +25℃→120℃ for incoming water ◆ Special Equipment Manufacturing License Qualification for The Pipe Component ◆ Control mode: imported microcomputer or PLC (optional) ◆ Perfect safety protection, fault display, easy repair and maintenance |
|
| ITEM | UNIT | Model | |||||
| AWM-10 | AWM-20 | AWM-30 | AWMH-10 | AWMH-20 | AWMH30 | ||
| Temp control range | ℃ | Inlet Water Temperature+25℃-100℃ | Inlet Water Temperature+25℃-120℃ | ||||
| Temp control accuracy | ℃ | PID±1℃ | |||||
| Power supply | 3N-380V/400V-50Hz (3ph-Earth) | ||||||
| Heat transfer medium | Water | ||||||
| Cooling method | Direct Cooling | Indirect Cooling | |||||
| Heating capacity | KW | 9 | 12 | 24 | 9 | 12 | 24 |
| Max power consumption | KW | 9.75 | 13.5 | 26,2 | 9.75 | 13.5 | 26.2 |
| Pump Power | KW | 0.75 | 1.5 | 2.2 | 0.75 | 1.5 | 2.2 |
| Pump flow | m³/h | 7 | 11 | 12.5 | 7 | 11 | 12.5 |
| Pump pressure | m | 15 | 18 | 22 | 15 | 18 | 22 |
| Alarm function | Inverse phase/overload/ Water shortage | ||||||
| Cooling water pipe | inch | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 |
| Circulating water pipe | inch | 3/8*4 | 3/8*4 | 3/8*4 | 3/8*4 | 3/8*4 | 3/8*4 |
| Size(L×W×H) | mm | 630*325*650 | 630*325*650 | 750*400*850 | 950*440*950 | 950*440*950 | 620*325*645 |

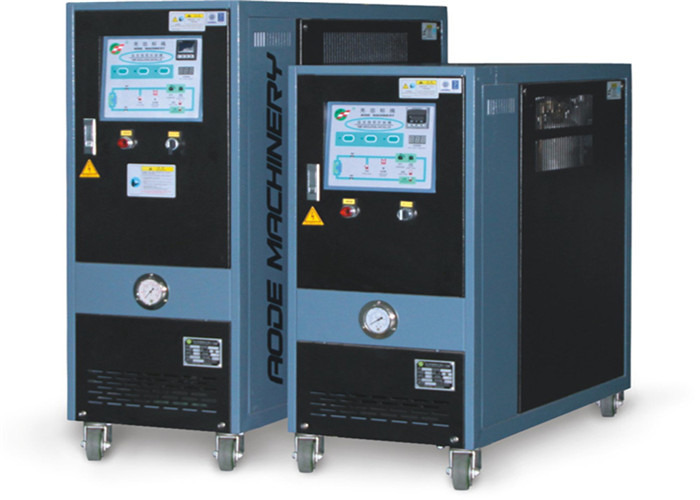

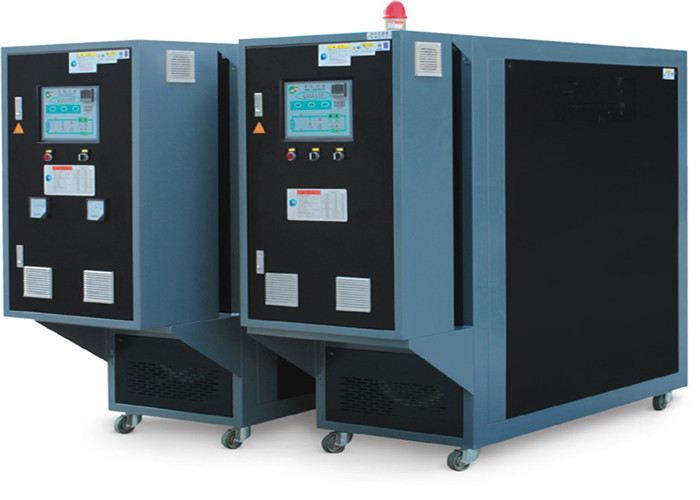

| Features of high temperature water temperature control unit◆ Explosion-proof equipment(optional) ◆ Air blowing and return water function(optional) ◆ Display for return water temperature ◆ Automatic air-exhausting function after startup ◆ Switchover of heating power ◆ RS485 communication function for automated management (optional) ◆ BY-PASS pressure release loop for hot water ◆ Customizable multi-point temperature control unit ◆ Customizable horsepower and heating power of oil pump ◆ Brands SIEMENS. Weidmuller, LS, MOELLER, ABB and WEST for electric appliances ◆ Range of temperature control: +45℃→180℃ for incoming water ◆ Special Equipment Manufacturing License Qualification for The Pipe Component ◆ Control mode: imported microcomputer or PLC (optional) ◆ Perfect safety protection, fault display, easy repair and maintenance |
ITEM | UNIT | Model | ||||
AEWH-10 | AEWH-20 | AEWT-10 | AEWT-20 | AEWT-30 | ||
Temp control range | ℃ | Inlet water temperature +45℃-150℃ | Inlet water temperature +45℃-150℃ | |||
Temp control accuracy | ℃ | PID±1℃ | ||||
Power supply | AC3∮380V 50Hz(3phase+Earth);AC3∮440V 60Hz;AC3∮460V 60Hz | |||||
Heat transfer medium | Water | |||||
Cooling method | Indirect Cooling | |||||
Heating capacity | KW | 9 | 12 | 9 | 12 | 24 |
Pump Horsepower | hp | 1 | 2 | 1 | 2 | 3 |
Pump flow | L/min | 40 | 60 | 95 | 153 | 235 |
Pump pressure | kg/cm² | 6 | 6 | 12 | 12 | 12 |
Max. power consumption | KW | 10 | 14 | 12 | 14 | 26 |
Alarm function | Open phase/water depletion/excess temperature/overloading/reverse turn/high voltage | |||||
Cooling water pipe | inch | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
Circulating water pipe | inch | 3/8*2 | 3/8*2 | 3/8*4 | 3/8*4 | 1 |
Size(L×W×H) | mm | 700*360*815 | 700*360*845 | 700*360*845 | 700*360*845 | 900*420*850 |
Weight | kg | 75 | 85 | 75 | 85 | 95 |
A Water Temperature Control Unit (WTCU) operates by circulating water through a heating or cooling system to maintain a set temperature. The unit draws water from a tank or external system, passes it through a heater or heat exchanger, and returns it to the process or mold. Temperature sensors continuously monitor the circulating fluid and send real-time data to the controller, which adjusts the heating or cooling elements accordingly. This closed-loop system enables high-precision control, fast thermal response, and efficient energy use, ensuring stable temperatures essential for industrial processes like injection molding or die casting.

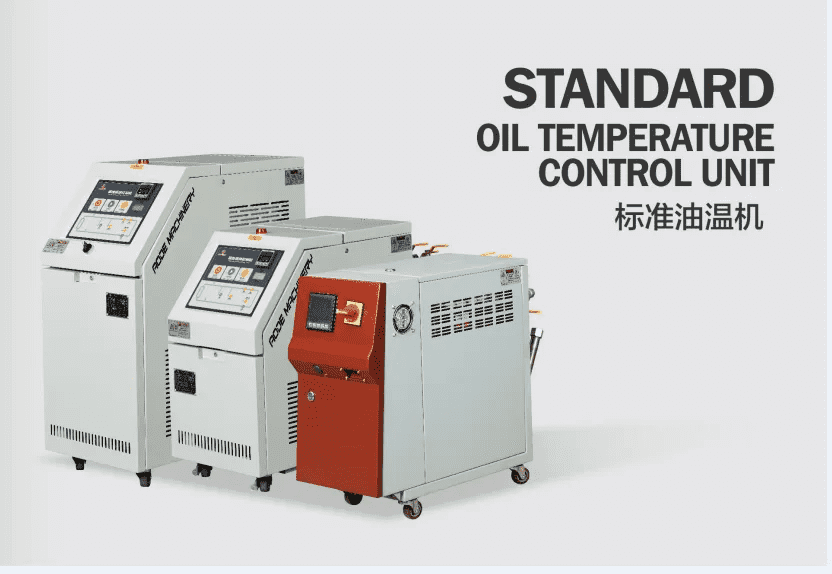

Water and Oil Temperature Control Units differ primarily in heat transfer medium and temperature range. Water-based units typically operate up to 180°C and offer faster heat exchange, lower cost, and eco-friendliness, making them ideal for injection molding and extrusion. Oil temperature control unit, in contrast, can reach temperatures of 350–400°C and are suitable for high-temperature applications like die casting or composite processing. However, they require more maintenance and carry higher risks due to oil oxidation and leakage. While oil units offer wider temperature ranges, water units provide better efficiency and cost-effectiveness. Investment choice depends on required temperature, process type, and safety considerations. To learn more you can click Detailed information of oil temperature control unit.
AODE’s Water Temperature Control Units are built with full compliance to international safety and performance standards. Each unit is equipped with multiple protection features, including over-temperature alarms, automatic shut-off, flow monitoring, and pressure relief systems to ensure safe operation. Our products comply with CE, RoHS, and ISO 9001 quality management certifications, ensuring consistent manufacturing quality and environmental responsibility. For customers in North America, UL-listed models are available upon request. These certifications reflect AODE’s commitment to product reliability, workplace safety, and global market compatibility.
The price of a Water Temperature Control Unit (WTCU) generally ranges from USD 1,000 to USD 8,000, depending on model type and specifications. Key pricing factors include:
① heating capacity (kW) ② temperature control range ③ pump power and flow rate | ④ cooling method ⑤ customization needs ⑥ control system integration |
Prices vary between standard and high-temperature models. Please note this is a reference only—actual pricing may differ. For accurate quotes and latest product information, kindly contact our sales team directly.
Over 20 Years of Expertise
| Advanced Precision Control
| Wide Product Range
|
Energy Efficiency & SustainabilityOptimized heating elements and smart PID control reduce energy consumption while maintaining high performance, improving overall factory efficiency. | ||
Integrated Safety Features
| Strong Manufacturing Capacity
| Global Certifications
|
Define Your Temperature Needs
| Check Heating/Cooling Capacity
| Evaluate Flow Rate & Pressure
|
Look for Safety Features
| Request Customization if Needed
|
Check Service & Support
| Ask for a Quotation or Trial
|
By choosing AODE’s Water Temperature Control Units, businesses achieve enhanced process efficiency, cost savings, and long-term mold protection, making them an ideal investment for industrial operations.
